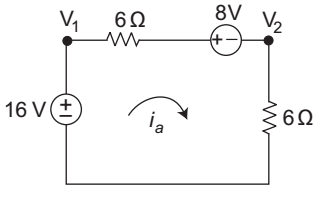

  1. Consider the circuit shown below—

    The voltage V1 and V2 are related as—










  1. View Hint View Answer Discuss in Forum

    V1 = 16 V
    on applying KVL in loop

    V1 – 6 ia – 8 – V2 = 0
    V1 = V2 + 8 + 6 ia

    Correct Option: B

    V1 = 16 V
    on applying KVL in loop

    V1 – 6 ia – 8 – V2 = 0
    V1 = V2 + 8 + 6 ia

  1. If a resistor of 10 Ω is placed in parallel with voltage source in the circuit shown below, the current i will be—










  1. View Hint View Answer Discuss in Forum

    If we place any circuit element (like resistor, capacitor or conductor) in parallel with the voltage source. It means this is extra redundant element present in the circuit, therefore, the current will remain constant in the circuit.

    Correct Option: C

    If we place any circuit element (like resistor, capacitor or conductor) in parallel with the voltage source. It means this is extra redundant element present in the circuit, therefore, the current will remain constant in the circuit.

  1. Two elements are connected in series as shown below element-1 supplies 36 W of power. Element-2—










  1. View Hint View Answer Discuss in Forum

    Current through element 1 is =
    36
    		 = 6 A
    6

    This current will pass through element-2. Since the polarities of element 1 and 2 are opposite to each other it means element-1 supply power so direction of current will be form negative to positive, i.e. element-2 will absorb power,
    P = V, i = 4 × 6 = 24 W

    Correct Option: B

    Current through element 1 is =
    36
    		 = 6 A
    6

    This current will pass through element-2. Since the polarities of element 1 and 2 are opposite to each other it means element-1 supply power so direction of current will be form negative to positive, i.e. element-2 will absorb power,
    P = V, i = 4 × 6 = 24 W

  1. Let i(t) = 3 te– 100 t A and V (t) = 0.6 (0.01 – t) e– 100 t V for the network of fig. shown below. The power being absorbed by the network element at t = 5 ms is—










  1. View Hint View Answer Discuss in Forum

    Power absorbed
    P = Vi = 0.6 (0.01 – t) e–100t .3.t.e– 100t
    Power at t = 5 ms = 5 × 10– 3
    P = 0.6 (0.01 – 5 × 10– 3) e– 100 × 5 × 10– 3 3.5 × 10– 3 e– 100 × 5 × 10– 3
    = 16.6 µW.
    Hence alternative (C) is the correct choice.

    Correct Option: C

    Power absorbed
    P = Vi = 0.6 (0.01 – t) e–100t .3.t.e– 100t
    Power at t = 5 ms = 5 × 10– 3
    P = 0.6 (0.01 – 5 × 10– 3) e– 100 × 5 × 10– 3 3.5 × 10– 3 e– 100 × 5 × 10– 3
    = 16.6 µW.
    Hence alternative (C) is the correct choice.

  1. Calculate the voltage between terminal ab for figure shown below—










  1. View Hint View Answer Discuss in Forum

    Apply KCL at node C

    2 + i1 = 8
    or i1 = 8 – 2 = 6A
    Vba = 0.2i1 × 2 = .4 × 6
    = 2.4 × V
    or Vab = – 2.4 V

    Correct Option: D

    Apply KCL at node C

    2 + i1 = 8
    or i1 = 8 – 2 = 6A
    Vba = 0.2i1 × 2 = .4 × 6
    = 2.4 × V
    or Vab = – 2.4 V
