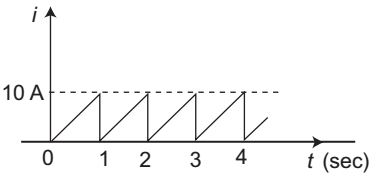

196. The current having the waveform shown in figure is flowing in a resistance of 10Ω. The average power is—




1. 1. 1000 watt





   2. 1000/2 watt





   3. 1000/3 watt





   4. 1000/4 watt





---

1. View Hint View Answer Discuss in Forum

   Average Power =		1	10(10t)2dt		R
   		1




   [By using formula avg. power		1	T0I2dt		.R ]
   		T




   = 100		T0I2dt		× 10




   = 1000		I3		10
   		3




   = 1000 ×	1	=	1000	watt
   	3		3




   Correct Option: C

   Average Power =		1	10(10t)2dt		R
   		1




   [By using formula avg. power		1	T0I2dt		.R ]
   		T




   = 100		T0I2dt		× 10




   = 1000		I3		10
   		3




   = 1000 ×	1	=	1000	watt
   	3		3




---

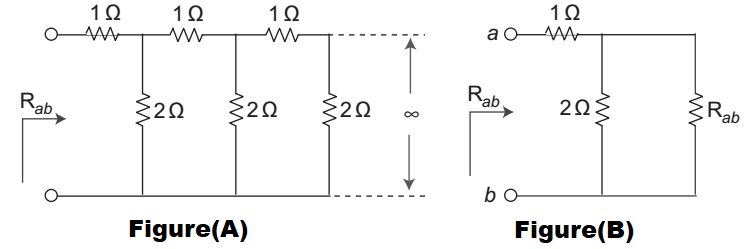

197. The equivalent resistance as seen between the terminals (a, b) is—

1. 1. 2 Ω





   2. 4 Ω





   3. 1 Ω





   4. Not possible





---

1. View Hint View Answer Discuss in Forum

   R_ab = 1 + (2 || R_ab)


   RAB = 1 +	2.Rab
   	2 + Rab




   RAB = 1 +	2 + Rab + 2 Rab
   	2 + Rab


   2 R_ab + (R_ab) ² = 2 + R_ab + 2 R_ab
   (R_ab)² – R_ab – 2 = 0
   R² _ab – 2 R_ab + R_ab – 2 = 0
   R_ab (R_ab – 2) + 1 (R_ab – 2) = 0
   (R_ab + 1) (R_ab – 2) = 0
   R_ab = – 1, 2
   R_ab = – 1 not possible
   so R_ab = 2




   Correct Option: A

   R_ab = 1 + (2 || R_ab)


   RAB = 1 +	2.Rab
   	2 + Rab




   RAB = 1 +	2 + Rab + 2 Rab
   	2 + Rab


   2 R_ab + (R_ab) ² = 2 + R_ab + 2 R_ab
   (R_ab)² – R_ab – 2 = 0
   R² _ab – 2 R_ab + R_ab – 2 = 0
   R_ab (R_ab – 2) + 1 (R_ab – 2) = 0
   (R_ab + 1) (R_ab – 2) = 0
   R_ab = – 1, 2
   R_ab = – 1 not possible
   so R_ab = 2




---

---

198. The Nodal method of circuit analysis is based on—

1. 1. KVL and Ohm's law





   2. KCL and Ohm's law.





   3. KCL and KVL





   4. KCL, KVL and Ohm's law





---

1. View Hint View Answer Discuss in Forum

   Nodal circuit analysis method is based on KCL and Ohm's law.

   Correct Option: B

   Nodal circuit analysis method is based on KCL and Ohm's law.

---

199. Twelve 1H inductors are used as edge to form a cube. The inductance between two diagonally opposite corners of cube is—

1. 1. 5	H
      6





   2. 10	H
      6





   3. 2 H





   4. 3	H
      2





---

1. View Hint View Answer Discuss in Forum

   Apply same concept as done in the earlier problem.

   Correct Option: A

   Apply same concept as done in the earlier problem.

---

---

200. Twelve 1Ω resistors are used as edge to form a cube. The resistance between two diagonally opposite corners of the cube is—

1. 1. 5	Ω
      6





   2. 6	Ω
      5





   3. 1 Ω





   4. None of these





---

1. View Hint View Answer Discuss in Forum

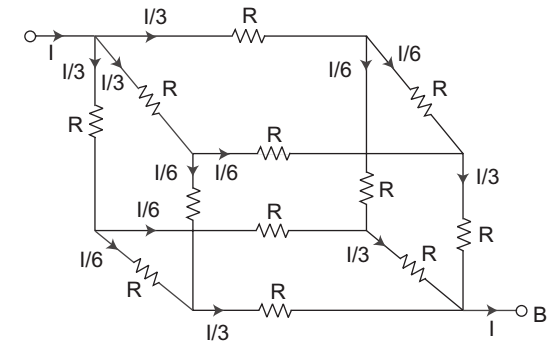

   Suppose value of resistances be RΩ each. Applying KVL by selecting any path between A and B.


   VAB =	1	. R +	1	R +	1	R
   	3		6		3




   VAB = IR		5
   		6




   VAB	=	5R
   I		6




   or RAB =	5R
   	6


   where R = 1 Ω for this problem


   so RAB =	5	Ω
   	6




   Correct Option: A

   Suppose value of resistances be RΩ each. Applying KVL by selecting any path between A and B.


   VAB =	1	. R +	1	R +	1	R
   	3		6		3




   VAB = IR		5
   		6




   VAB	=	5R
   I		6




   or RAB =	5R
   	6


   where R = 1 Ω for this problem


   so RAB =	5	Ω
   	6




---
