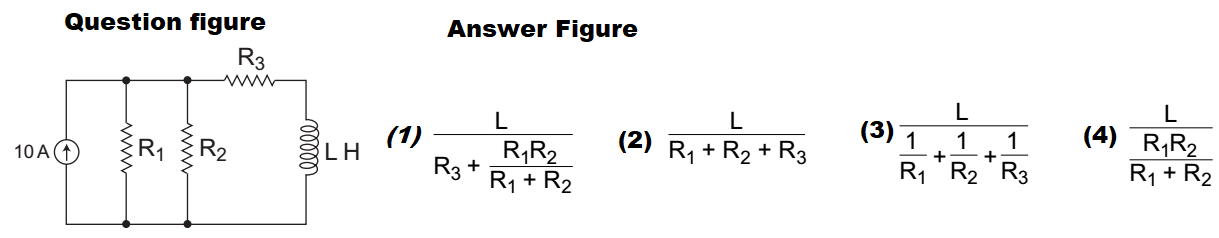

216. The time constant of the network shown below is given by—




1. 1. (1)





   2. (2)





   3. (3)





   4. (4)





---

1. View Hint View Answer Discuss in Forum

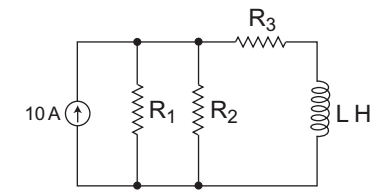

   so, τ =	L
   	R3 + ( R1 + R2 / R1 + R2)




   Correct Option: A

   so, τ =	L
   	R3 + ( R1 + R2 / R1 + R2)




---

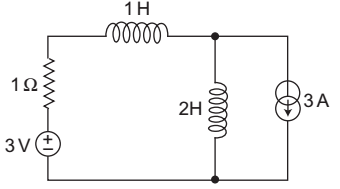

217. The steady state current through the 1H inductor in the circuit shown in the given figure is—




1. 1. Zero





   2. 3A





   3. 5A





   4. 6A





---

1. View Hint View Answer Discuss in Forum

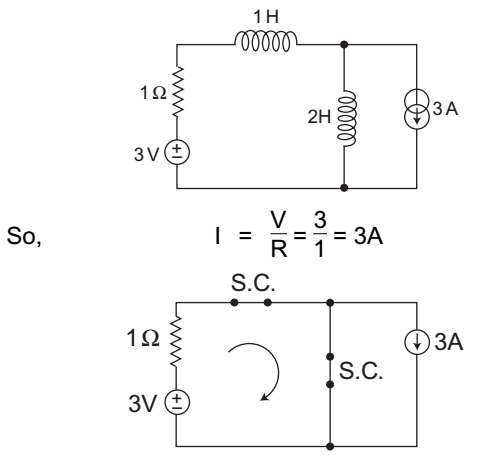

   At steady state condition inductor will short
   Hence alternative (B) is the correct choice.






   Correct Option: B

   At steady state condition inductor will short Hence alternative (B) is the correct choice.




---

---

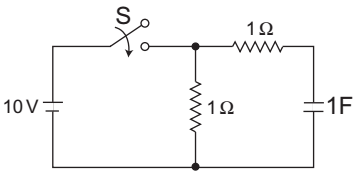

218. For the circuit shown below, the switch is closed at t = 0. The current through the capacitor decreases exponentially with a time constant—




1. 1. 0·5s





   2. 1s





   3. 2s





   4. 10s





---

1. View Hint View Answer Discuss in Forum

   τ = RC = Req. C = (1 || 1) × 1f =	1	× 1 = ·5S
   	2

   Correct Option: A

   τ = RC = Req. C = (1 || 1) × 1f =	1	× 1 = ·5S
   	2

---

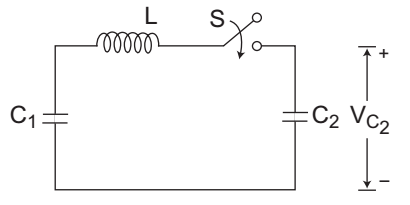

219. For the circuit shown below, C₁ = C₂ = 2F and the capacitor C₁ has a voltage of 20V when S is open. If the switch S is closed at t = 0, the voltage V_c2 will be a—




1. 1. Fixed voltage of 20V





   2. Fixed voltage of 10V





   3. Fixed voltage of – 10V





   4. Sinusoidal voltage





---

1. View Hint View Answer Discuss in Forum

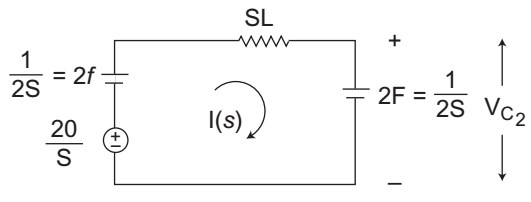

   Applying KVL in s-domain


   	LS +	2		I(s) =	20
   		2S			s




   	LS +	1		I(s) =	20
   		S			s




   I(s) =	20
   	LS2 + 1




   VC2(s) =	1	I(s) =	1	.	20
   	SC2		SC2		LS2 + 1


   Here A + B are constant after taking inverse laplace V_C2 (t) will be sinusoidal voltage.
   Hence alternative (D) is the correct choice.




   Correct Option: D

   Applying KVL in s-domain


   	LS +	2		I(s) =	20
   		2S			s




   	LS +	1		I(s) =	20
   		S			s




   I(s) =	20
   	LS2 + 1




   VC2(s) =	1	I(s) =	1	.	20
   	SC2		SC2		LS2 + 1


   Here A + B are constant after taking inverse laplace V_C2 (t) will be sinusoidal voltage.
   Hence alternative (D) is the correct choice.




---

---

220. A resistor R of 1Ω and two inductors L₁ and L₂ of inductances 1H and 2H respectively, are connected in parallel. At some time, the currents through L₁ and L₂ are 1A and 2A. The current through R at time t = ∞ will be—

1. 1. Zero





   2. 1A





   3. 2A





   4. 3A





---

1. View Hint View Answer Discuss in Forum

   at t = ∞ inductor will short circuited and because of parallel connection resistor will also be short circuited and current through R will be zero.


   Correct Option: A

   at t = ∞ inductor will short circuited and because of parallel connection resistor will also be short circuited and current through R will be zero.


---
