Easy Questions

Physical Electronics Devices and ICs

Physical electronics devices and ics miscellaneous
  1. The number of depletion layers in a transistor is—








  1. View Hint View Answer Discuss in Forum

    The number of depletion layers in a transistor is 2.

    Correct Option: D

    The number of depletion layers in a transistor is 2.

  1. In a p-n-p transistor, in the base region, the main stream of current is—








  1. View Hint View Answer Discuss in Forum

    In a pnp transistor, in the base region, the main stream of current is diffusion of holes because holes emit from emitter and some hole diffuse in the base region.

    Correct Option: B

    In a pnp transistor, in the base region, the main stream of current is diffusion of holes because holes emit from emitter and some hole diffuse in the base region.

  1. The conductivity of the emitter region of a BJT is kept—








  1. View Hint View Answer Discuss in Forum

    The conductivity of the Emitter region of a BJT kept much larger than that of base region because the main function of emitter is to emit the charge carriers (i.e. electrons or holes). So for achieving this conductivity of emitter region of a BJT kept much larger than that of base and collector region.

    Correct Option: C

    The conductivity of the Emitter region of a BJT kept much larger than that of base region because the main function of emitter is to emit the charge carriers (i.e. electrons or holes). So for achieving this conductivity of emitter region of a BJT kept much larger than that of base and collector region.

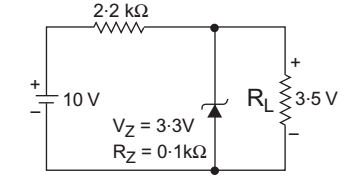

  1. The current through the zener diode in figure given below is—










  1. View Hint View Answer Discuss in Forum

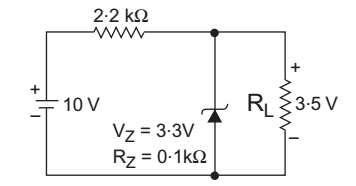

    The given circuit(i.e., fig)
    The voltage across, RZ = 3·5 – 3·3 = 0·2V

    I Z =
    VRZ
    		=
    0·2V
    		= 2 mA
    RZ0·1 KΩ

    Hence alternative (C) is the correct choice.


    Correct Option: C

    The given circuit(i.e., fig)
    The voltage across, RZ = 3·5 – 3·3 = 0·2V

    I Z =
    VRZ
    		=
    0·2V
    		= 2 mA
    RZ0·1 KΩ

    Hence alternative (C) is the correct choice.


  1. The device associated with voltage-controlled capacitance is a—








  1. View Hint View Answer Discuss in Forum

    The device associated with voltage-controlled capacitance is a varactor diode.

    Correct Option: C

    The device associated with voltage-controlled capacitance is a varactor diode.
