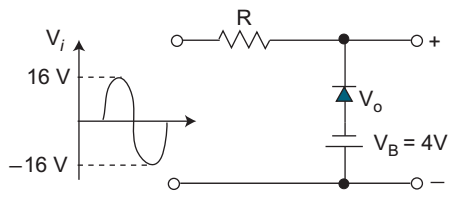

66. The peak for both half cycles of the output waveform—




1. 1. 16 V, 4 V





   2. 16 V, –4 V





   3. –16 V, 4 V





   4. 12 V, 4 V





---

1. View Hint View Answer Discuss in Forum

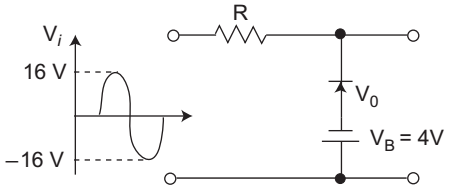

   For first half cycle the diode will be OFF
   So, V₀ = V_i = 16 V
   For second half cycle the diode will be ON
   So, V₀ = V_B = 4V
   Hence alternative (A) is the correct choice.




   Correct Option: A

   For first half cycle the diode will be OFF
   So, V₀ = V_i = 16 V
   For second half cycle the diode will be ON
   So, V₀ = V_B = 4V
   Hence alternative (A) is the correct choice.




---

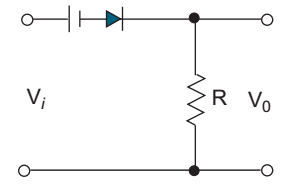

67. What best describes the circuit?




1. 1. Full-wave rectifier





   2. Half-wave rectifier





   3. Clipper





   4. Clamper





---

1. View Hint View Answer Discuss in Forum

   NA

   Correct Option: C

   NA

---

---

68. Determine the total discharge time for the capacitor in a clamper having C = 0.01 µF and R = 500 kΩ.—

1. 1. 5 ms





   2. 25 ms





   3. 2.5 ms





   4. 50 ms





---

1. View Hint View Answer Discuss in Forum

   = RC = 500 × 10³ × 0.01 × 10⁶ = 5ms

   Correct Option: A

   = RC = 500 × 10³ × 0.01 × 10⁶ = 5ms

---

69. Diffusion current in a pn-junction is influenced by—

1. 1. Applied voltage





   2. Concentration gradient





   3. Concentration





   4. All of these





---

1. View Hint View Answer Discuss in Forum

   Diffusion current in a p n -junction diode is influenced by concentration gradient.

   Correct Option: B

   Diffusion current in a p n -junction diode is influenced by concentration gradient.

---

---

70. Drift current in a pn-junction is influenced by—

1. 1. Applied voltage





   2. Concentration gradient





   3. Concentration





   4. All of these





---

1. View Hint View Answer Discuss in Forum

   Drift current of a pn-junction diode is influenced by applied voltage.

   Correct Option: A

   Drift current of a pn-junction diode is influenced by applied voltage.

---
