  1. A shift counter comprising five flip-flops with an inverse feedback from the output of the MSB flip-flop to the input of the LSB flip-flops is a—








  1. View Hint View Answer Discuss in Forum

    The required shift counter is called Johnson counter or twisted ring counter, since an inverse feedback from the output of the MSB flip-flop to the input of the LSB flip-flop is applied. Because counter comprising 5 flip-flops it means no number of stages will be 2n
    i.e., 2 × 5 = 10
    Therefore, the given counter is divide by 10 counter.

    Correct Option: B

    The required shift counter is called Johnson counter or twisted ring counter, since an inverse feedback from the output of the MSB flip-flop to the input of the LSB flip-flop is applied. Because counter comprising 5 flip-flops it means no number of stages will be 2n
    i.e., 2 × 5 = 10
    Therefore, the given counter is divide by 10 counter.

  1. The minimum number of flip-flops needed to construct a BCD decade counter is—








  1. View Hint View Answer Discuss in Forum

    The minimum number of flip-flops needed to construct a BCD decade counter is 4.

    Correct Option: A

    The minimum number of flip-flops needed to construct a BCD decade counter is 4.

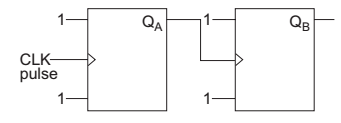

  1. The circuit given below illustrates a typical application of the JK flip-flop. What does this represent?










  1. View Hint View Answer Discuss in Forum

    NA

    Correct Option: C

    NA

  1. Consider the following statements in Johnson counter:
    1. A MOD-6 Johnson counter requires 3 FFs.
    2. Johnson counter requires decoding gates.
    3. To decode each count, one logic gate is used.
    Which of the statements given above are correct?








  1. View Hint View Answer Discuss in Forum

    NA

    Correct Option: D

    NA

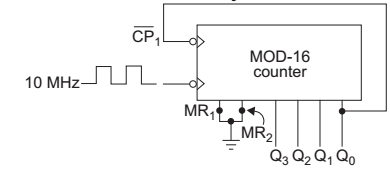

  1. For given MOD-16 counter with a 10 MHz clock input. Determine the frequency at Q3 —










  1. View Hint View Answer Discuss in Forum

    NA

    Correct Option: A

    NA
