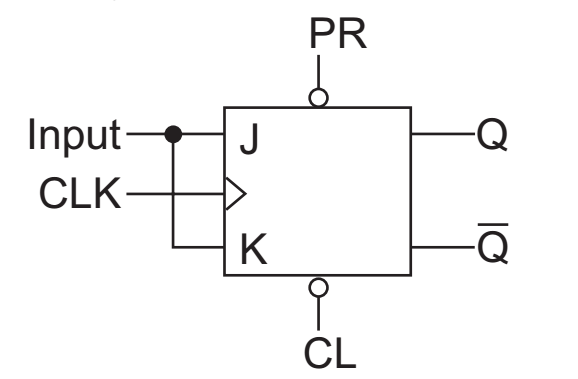

201. The following configuration provides—




1. 1. Master Slave action





   2. Delay gate





   3. Toggle switch





   4. None of these





---

1. View Hint View Answer Discuss in Forum

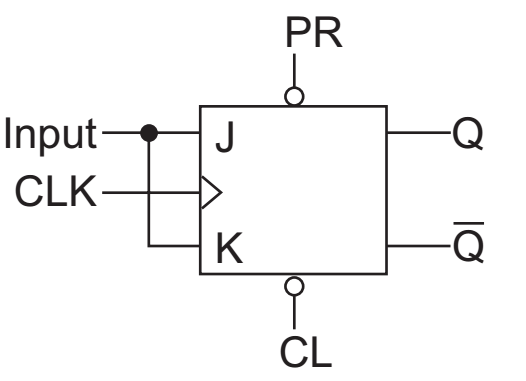

   The given configuration
   Given, J = K = input.
   Means T flip-flop which acts as toggle switch.




   Correct Option: C

   The given configuration
   Given, J = K = input.
   Means T flip-flop which acts as toggle switch.




---

202. The characteristic equation of an SR flip-flop is given by—

1. 1. Q_n+1 = S + R Q_n





   2. Q_n+1 = R Q_n + SQ_n





   3. Q_n+1 = S + RQ_n





   4. Q_n+1 = S + RQ_n





---

1. View Hint View Answer Discuss in Forum

   The characteristic equation of SR flip-flop is given by Q_n+1 = S + RQ_n

   Correct Option: C

   The characteristic equation of SR flip-flop is given by Q_n+1 = S + RQ_n

---

---

203. Sequential circuits contains—

1. 1. No memory element





   2. Atleast one memory element





   3. All inputs applied simultaneously





   4. None of these





---

1. View Hint View Answer Discuss in Forum

   Sequential circuit contains at least one memory element.

   Correct Option: B

   Sequential circuit contains at least one memory element.

---

204. In sequential circuit the output state depend upon—

1. 1. Past input states





   2. Present input states





   3. Present as well as past input





   4. None of these





---

1. View Hint View Answer Discuss in Forum

   In sequential circuit the output state depends upon present as well as past input.

   Correct Option: C

   In sequential circuit the output state depends upon present as well as past input.

---

---

205. A cascade arrangement of four stages of BCD counters can be used to count a maximum of—


1. 1. 1111 pulses






   2. 111111111111111 pulses






   3. 1001100110011001 pulses






   4. 9999 pulses





---

1. View Hint View Answer Discuss in Forum

   NA

   Correct Option: D

   NA

---
