Which of the following are the conditions for a two port passive network to be a reciprocal one?
1. Z₁₂ = z₂₁
2. Y₁₂ = y₂₁
3. h₁₂ = – h₂₁
Select the correct condition from the code given below—

1. Only 1 and 2
1. Only 2 and 3
1. Only 1 and 3
1. 1, 2 and 3

View Hint View Answer Discuss in Forum

For the two port passive network to be reciprocal
1. Z₁₂ = Z₂₁ → correct
2. Y₁₂ = Y₂₁ → correct
3. h₁₂ = h_-21 → correct

(D) is the correct choice.

Correct Option: D

For the two port passive network to be reciprocal
1. Z₁₂ = Z₂₁ → correct
2. Y₁₂ = Y₂₁ → correct
3. h₁₂ = h_-21 → correct

(D) is the correct choice.

What is the open circuit impedance Z₁₁(s) of the network shown in the figure given above?

1. 10 + 2s
1. 10 - 4
  s
1. 10 + 4
  s
1. 10 – 2s

View Hint View Answer Discuss in Forum

The given network:

Applying KVL in the input side
V₁ = l₁ × 10 + l₁ = 1 + l₂ 1
1 s 1 s
4 4

or
V₁ = 10l₂ + 4 l₁ + l₂ 4
s s

or
V₁ = I₁ 10 + 4 + 4 l²........(i)
s s

On comparing equation (i) with standard equation of Z-parameters, we get
Z₁₁ = 10 + 4 l². . . . .. . . . (ii)
s

Hence alternative (C) is the correct choice.

Correct Option: A

The given network:

Applying KVL in the input side
V₁ = l₁ × 10 + l₁ = 1 + l₂ 1
1 s 1 s
4 4

or
V₁ = 10l₂ + 4 l₁ + l₂ 4
s s

or
V₁ = I₁ 10 + 4 + 4 l²........(i)
s s

On comparing equation (i) with standard equation of Z-parameters, we get
Z₁₁ = 10 + 4 l². . . . .. . . . (ii)
s

Hence alternative (C) is the correct choice.

What is the value of Z₂₁ for the network shown above?

1. – 2Ω
1. – 1/2Ω
1. 1Ω
1. 2Ω

View Hint View Answer Discuss in Forum

The given network

Since the given network is symmetric lattice network,
therefore
Z₁₁ = Z₂₂ = R₁ + R₂ = 2 + 1 = 3 Ω
2 2 2

and
Z₁₁ = Z₂₁ = R₂ - R₁ = 1 - 2 = -1 Ω
2 2 2

Hence alternative (B) is the correct choice.

Correct Option: B

The given network

Since the given network is symmetric lattice network,
therefore
Z₁₁ = Z₂₂ = R₁ + R₂ = 2 + 1 = 3 Ω
2 2 2

and
Z₁₁ = Z₂₁ = R₂ - R₁ = 1 - 2 = -1 Ω
2 2 2

Hence alternative (B) is the correct choice.

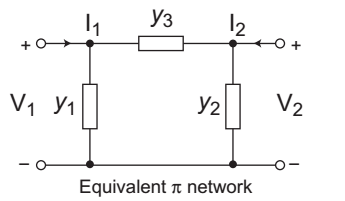

Equivalent π network The currents I₁ and I₂ at the output of 2-port network can be written as
I₁ = 5V₁ – V₂
I₂ = – V₁ + V₂
Which one of the following gives the parameters of an equivalent π network shown above?

1. y₁ = 4Ω, y₂ = 0, y₃ = 1Ω
1. y₁ = 4Ω, y₂ = 4, y₃ = 1Ω
1. y₁ = 1Ω, y₂ = 1Ω, y₃ = 1Ω
1. y₁ = 4Ω, y₂ = 0, y₃ = 2Ω

View Hint View Answer Discuss in Forum

The Y-parameter are represented by expressions:
I₁ = Y₁₁V₁ + Y₁₂V₂ . . . …(i)
I₂ = Y₂₁V₁ + Y₂₂V₂ . . . …(ii)
The given network:

The given equation
I₁ = 5V₁ – V₂ . . . …(iii)
I₂ = – V₁ + V₂ . . . …(iv)
On comparing equation (i) and (ii) with (iii) and (iv), we get:
y₁₁ = 5, y₁₂ = – 1
y₂₁ = – 1, y₂₂ = 1
For a π-network
y₁₁ = y₁ + y₃ = 5
y₂₂ = y₂ + y₃ = 1
y₁₂ = y₂₁ = – y₃ = – 1, i.e., y₃ = 1Ω
So,
y₁ = 5 – y₃ = 5 – 1 = 4Ω
and
y₂ = 1 – y₃ = 1 – 1 = 0Ω
Hence alternative (A) is the correct choice.

Correct Option: A

The Y-parameter are represented by expressions:
I₁ = Y₁₁V₁ + Y₁₂V₂ . . . …(i)
I₂ = Y₂₁V₁ + Y₂₂V₂ . . . …(ii)
The given network:

The given equation
I₁ = 5V₁ – V₂ . . . …(iii)
I₂ = – V₁ + V₂ . . . …(iv)
On comparing equation (i) and (ii) with (iii) and (iv), we get:
y₁₁ = 5, y₁₂ = – 1
y₂₁ = – 1, y₂₂ = 1
For a π-network
y₁₁ = y₁ + y₃ = 5
y₂₂ = y₂ + y₃ = 1
y₁₂ = y₂₁ = – y₃ = – 1, i.e., y₃ = 1Ω
So,
y₁ = 5 – y₃ = 5 – 1 = 4Ω
and
y₂ = 1 – y₃ = 1 – 1 = 0Ω
Hence alternative (A) is the correct choice.

In the circuit shown below, RL will absorb maximum power when its value is—

1. 2·75Ω
1. 7·5Ω
1. 25Ω
1. 27Ω

View Hint View Answer Discuss in Forum

The given circuit

R_L will absorb maximum power when its value is equivalent to R_th i.e., R_L = R_th
The R_th can be calculated by the equivalent circuit shown below

Correct Option: C

The given circuit

R_L will absorb maximum power when its value is equivalent to R_th i.e., R_L = R_th
The R_th can be calculated by the equivalent circuit shown below
