Network theory miscellaneous

For the circuit shown below, the V₁ = ?

1. V₁ = 40V, V₂ = 15V
1. V₁ = – 40V, V₂ = – 15V
1. V₁ = 15V, V₂ = 40V
1. V₁ = – 15V, V₂ = – 40V

View Hint View Answer Discuss in Forum

The given circuit

Applying KCL at node A
V₁ - 20 + V₁ - 0.5V₁ - V₂ = 2
20 5

or
V₁ 1 + 1 - V₂ = 3
20 10 5

or
3V₁ - V₂ = 3
20 5

or
3V₁ – 4V₂ = 60 . . . . . . …(i)
KCL at node B
V₂ - V₁ + 0.5V₁ + V₂ + V₂ - 40 = 4
5 2 10

V₂ 1 + 1 + 1 - V₁ = 8
5 2 10 10

or
V₂ 2 + 5 + 1 - V₁ = 8
10 8

or
8V₁ – V₁ = 80 …. . . (ii)
From equation (i) and (ii)
V₁ = 40V and V₂ = 15V
Hence alternative (A) is the correct choice.

Correct Option: A

The given circuit

Applying KCL at node A
V₁ - 20 + V₁ - 0.5V₁ - V₂ = 2
20 5

or
V₁ 1 + 1 - V₂ = 3
20 10 5

or
3V₁ - V₂ = 3
20 5

or
3V₁ – 4V₂ = 60 . . . . . . …(i)
KCL at node B
V₂ - V₁ + 0.5V₁ + V₂ + V₂ - 40 = 4
5 2 10

V₂ 1 + 1 + 1 - V₁ = 8
5 2 10 10

or
V₂ 2 + 5 + 1 - V₁ = 8
10 8

or
8V₁ – V₁ = 80 …. . . (ii)
From equation (i) and (ii)
V₁ = 40V and V₂ = 15V
Hence alternative (A) is the correct choice.

The total power consumed in the circuit shown in the figure is—

1. 10W
1. 12W
1. 16W
1. 20W

View Hint View Answer Discuss in Forum

The given circuit:

Case 1: When current source is taken:

The net current in branch AB is 2A
Case 2: When voltage source is taken:

The net current in branch BC is 2/2 = 1A
Now, the total power consumed in the circuit:
= I²_ABR_AB + I²_BC × R_BC
= 2² × 2 + 1² × 2
= 10W.

Correct Option: A

The given circuit:

Case 1: When current source is taken:

The net current in branch AB is 2A
Case 2: When voltage source is taken:

The net current in branch BC is 2/2 = 1A
Now, the total power consumed in the circuit:
= I²_ABR_AB + I²_BC × R_BC
= 2² × 2 + 1² × 2
= 10W.

The effective resistance between terminals A and B in the circuit shown below is—

1. R
1. R – 1
1. R/2
1. 6 R
  11

View Hint View Answer Discuss in Forum

The given circuit:

By converting star network into delta network

R_{eq. (AB)} = R_AB || (R_AC + R_BC)
Where,
R_AB = R || 3R = 3/4 R
R_AC = R || 3R = 3/4 R
R_BC = R || 3R = 3/4 R
Now,
R_{eq. (AB)} = 3R 3R + 3 R
4 4 4

= 3R 6 R = 3R/4 × 6R/4
4 4 3R/4 + 6R/4

= 18R² = R
16 × (9R/4) 2

Hence alternative (C) is the correct choice.

Correct Option: C

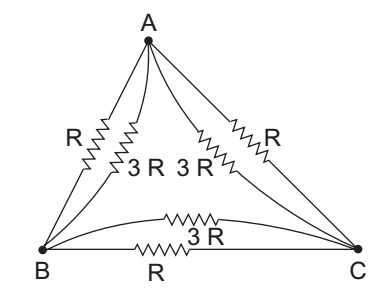

The given circuit:

By converting star network into delta network

R_{eq. (AB)} = R_AB || (R_AC + R_BC)
Where,
R_AB = R || 3R = 3/4 R
R_AC = R || 3R = 3/4 R
R_BC = R || 3R = 3/4 R
Now,
R_{eq. (AB)} = 3R 3R + 3 R
4 4 4

= 3R 6 R = 3R/4 × 6R/4
4 4 3R/4 + 6R/4

= 18R² = R
16 × (9R/4) 2

Hence alternative (C) is the correct choice.

The circuit shown in figure 1 is replaced by that in figure 2. If current ‘I’ remains the same, then R₀ will be—

1. Zero
1. R
1. 2R
1. 4R

View Hint View Answer Discuss in Forum

The given circuit:

In order to make current-I same in both figures:
1 = 1 + R₀
1/32R + 1/16R + 1/8R 1/4R + 1/2R + 1/R

or
32R = 4R + R₀
7 7

or
R₀ = 32R - 4R = 28R
7 7 7

or
R₀ = 4R

Correct Option: D

The given circuit:

In order to make current-I same in both figures:
1 = 1 + R₀
1/32R + 1/16R + 1/8R 1/4R + 1/2R + 1/R

or
32R = 4R + R₀
7 7

or
R₀ = 32R - 4R = 28R
7 7 7

or
R₀ = 4R

For the circuit shown below, the current delivered by 24V source—

1. 1·142A
1. – 1·142A
1. 2·200A
1. – 2·284A

View Hint View Answer Discuss in Forum

The given circuit:

Applying KCL at node A, we get:
V_A - 24 + V_A - 0 + V_A - 36 = 2
5 2 10

or
V_A 1 + 1 + 1 = 2 + 24 + 36
5 2 10 5 10

or
V_A 2 + 5 + 1 = 20 + 24 × 2 + 36
10 10

or
V_A = 104 = 13
8

The current delivered by 24V source,
I = 24 + 13 = 2.2A
5

Hence alternative (C) is the correct choice.

Correct Option: C

The given circuit:

Applying KCL at node A, we get:
V_A - 24 + V_A - 0 + V_A - 36 = 2
5 2 10

or
V_A 1 + 1 + 1 = 2 + 24 + 36
5 2 10 5 10

or
V_A 2 + 5 + 1 = 20 + 24 × 2 + 36
10 10

or
V_A = 104 = 13
8

The current delivered by 24V source,
I = 24 + 13 = 2.2A
5

Hence alternative (C) is the correct choice.
