Electronic measurements and instrumentation miscellaneous

Match List-I with List-II and select the correct answer using the codes given below the Lists:
List-I (Parameter measured) List-II (Bridge)
A. Audio frequency 1. Maxwell bridge
B. Hay bridge 2. 20
C. Dielectric loss 3. Wien bridge
D. Low Q inductor 4. Schering bridge

1. A B C D
  3 4 2 1
1. A B C D
  3 2 4 1
1. A B C D
  4 2 1 3
1. A B C D
  1 4 2 3

View Hint View Answer Discuss in Forum

● Audio frequency → Wien bridge
● High Q inductor → Hay bridge
● Dielectric loss → Schering bridge
● Low Q inductor → Maxwell bridge

Correct Option: B

● Audio frequency → Wien bridge
● High Q inductor → Hay bridge
● Dielectric loss → Schering bridge
● Low Q inductor → Maxwell bridge

A sinusoidal waveform, when observed on an oscilloscope, has a peak to peak ampltitude of 6 cm. If the vertical sensitivity setting is 5V/cm, the rms value of the voltage will be:

1. 10·6 V
1. 11·1 V
1. 12·6 V
1. 15 V

View Hint View Answer Discuss in Forum

Given,
Peak-to-peak = 6 cm
so,
peak value = 3 cm
sensitivity = 5 V/cm
∴ Amplitude of the signal
= 3 × 5 = 15V
r.m.s. value = Amplitude/√2
= 5/√12= 10·6V

Correct Option: A

Given,
Peak-to-peak = 6 cm
so,
peak value = 3 cm
sensitivity = 5 V/cm
∴ Amplitude of the signal
= 3 × 5 = 15V
r.m.s. value = Amplitude/√2
= 5/√12= 10·6V

A 35V dc supply is connected across a resistance of 600 ohm in series with an unknown resistance Rx. A voltmeter having a resistance of 1·2 k-ohm is connected across 600 ohm resistance and reads 5V. The value of resistance Rx will be:

1. 120 ohm
1. 400 ohm
1. 1·8 k-ohm
1. 2·4 k-ohm

View Hint View Answer Discuss in Forum

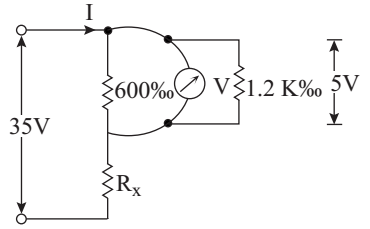

From the given information we can make the circuit arrangement given below:
Let current I is flowing in the circuit.
Here,
I = Voltmeter reading in volt
Effective resistance offered by the voltmeter

or
I = 5
600 | | 1200

or
I = 5 = 5 = 1 Amp
720000/1800 400 80

Now, R_x = 35 – 5/I
or
R_x = 30
1/80

or
R_x = 2400
or
R_x = 2·4 kΩ.

Correct Option: D

From the given information we can make the circuit arrangement given below:
Let current I is flowing in the circuit.
Here,
I = Voltmeter reading in volt
Effective resistance offered by the voltmeter

or
I = 5
600 | | 1200

or
I = 5 = 5 = 1 Amp
720000/1800 400 80

Now, R_x = 35 – 5/I
or
R_x = 30
1/80

or
R_x = 2400
or
R_x = 2·4 kΩ.

Potentiometer is, essentially, an apparatus by means of which:

1. Resistance are compared
1. Emf ’s are compared
1. Capacitances are compared
1. Currents are compared

View Hint View Answer Discuss in Forum

Potentiometer is, essentially an apparatus by means of which emf ’s are compared.

Correct Option: B

Potentiometer is, essentially an apparatus by means of which emf ’s are compared.

Siemens is a unit for measuring:

1. Conductance
1. Resistance
1. Flux density
1. Electric field

View Hint View Answer Discuss in Forum

Siemens is a unit for measuring conductance.

Correct Option: A

Siemens is a unit for measuring conductance.
