31. Hay’s bridge:


1. 1. Is particularly suited for the measurement of capacitance over a wide range of values






   2. Is particularly suited to the measurement of inductances having high Q-values






   3. Is suited for the measurement of capacitances having high Q-values






   4. Is suited for the measurement of inductances having low Q-values





---

1. View Hint View Answer Discuss in Forum

   Hay’s bridge is particularly suited to the measurement of inductances having high Q-values.

   Correct Option: B

   Hay’s bridge is particularly suited to the measurement of inductances having high Q-values.

---

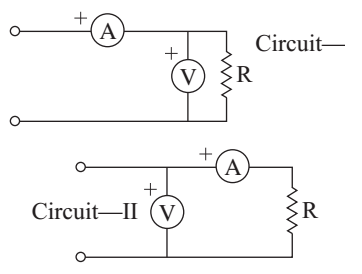

32. The power in a resistor R is estimated by measuring the voltage and current using the voltmeter-ammeter method. Two different arrangements can be used as shown in circuits I and II. Less erroneous results are obtainted by adopting:





1. 1. circuit I for low values of R






   2. circuit II for low values of R






   3. circuit I for high values of R






   4. circuit II for low values of R





---

1. View Hint View Answer Discuss in Forum

   NA

   Correct Option: A

   NA

---

---

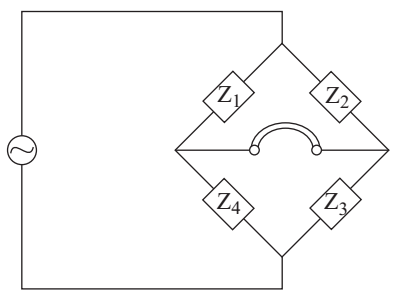

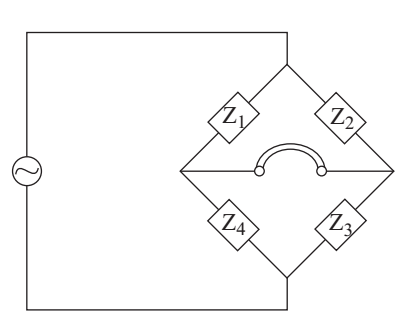

33. In the ac bridge shown in the figure:
    where,
    Z₁ = 450 ohm,
    Z₂ = (300– j600) ohm,
    Z₃ = (200 + j100) ohm.
    The value of unknown impedance Z₄ at balance is:





1. 1. (100 + j150) ohm






   2. (100 – j150) ohm






   3. (300 + j150) ohm






   4. (0 + j150) ohm





---

1. View Hint View Answer Discuss in Forum

   Given, Z₁ = 450Ω
   Z₂ = (300 – j600)Ω
   Z₃ = (200 + j100)Ω
   Z₄ =?
   under balanced condition


   Z1	=	Z4
   Z2		Z3


   or


   Z4 =	Z1Z3
   	Z2


   or


   Z4 = 450	(200 + j100)
   	(300 – j600)


   or
   Z₄ = (0 + j150)Ω (After simplifying)




   Correct Option: D

   Given, Z₁ = 450Ω
   Z₂ = (300 – j600)Ω
   Z₃ = (200 + j100)Ω
   Z₄ =?
   under balanced condition


   Z1	=	Z4
   Z2		Z3


   or


   Z4 =	Z1Z3
   	Z2


   or


   Z4 = 450	(200 + j100)
   	(300 – j600)


   or
   Z₄ = (0 + j150)Ω (After simplifying)




---
