61. The maximum phase shift that can be provided by a lead compensator with transfer function—


    Gc(s) =	1 + 6s
    	1 + 2s


    is—


1. 1. 15°






   2. 30°






   3. 45°






   4. 60°





---

1. View Hint View Answer Discuss in Forum

   Try yourself, same as 184.

   Correct Option: B

   Try yourself, same as 184.

---

62. The polar plot of a type-1, 3-pole, open-loop system is shown in figure. The closedloop system is—


1. 1. always stable






   2. marginally stable






   3. unstable with one pole on the right half s-plane






   4. unstable with two poles on the right half s-plane





---

1. View Hint View Answer Discuss in Forum

   NA

   Correct Option: C

   NA

---

---

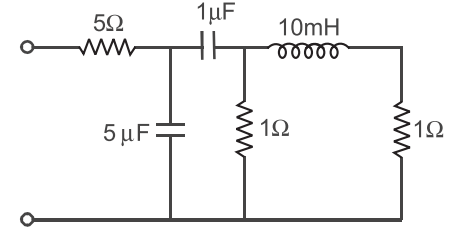

63. The minimum number of states necessary to describe the network shown in the figure in a state variable form is—





1. 1. 2






   2. 3






   3. 4






   4. 6





---

1. View Hint View Answer Discuss in Forum

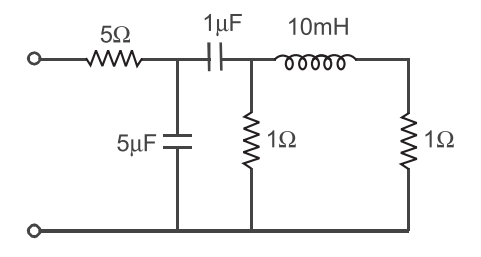

   The minimum number of states necessary to describe a network is the number of independent energy storing elements in the network i.e., there are three elements in the given figure.




   Correct Option: B

   The minimum number of states necessary to describe a network is the number of independent energy storing elements in the network i.e., there are three elements in the given figure.




---

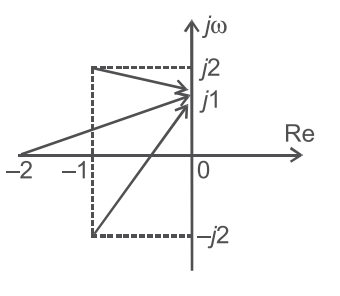

64. Consider the vectors drawn form the poles and zeros at jω = 1 on the imaginary axis as shown in the given figure. The transfer function G (j1) is given by—





1. 1. 1/2 ∠0º






   2. 2.7 ∠ – 31º






   3. 2 ∠45º






   4. 2 ∠ – 67.4º





---

1. View Hint View Answer Discuss in Forum

   NA

   Correct Option: A

   NA

---

---

65. The transfer function of a multi-input, multi-output system with the state-space representation is
    X · = AX + BU
    Y = CX + DU
    where X represents the present state, Y the output and U the input vector, will be given by—


1. 1. C (sl – A)^–1 B






   2. C (sl – A)^–1 B + D






   3. (sl – A)^–1 B + D






   4. C (sl – A)^–1 B





---

1. View Hint View Answer Discuss in Forum

   Refer synopsis

   Correct Option: B

   Refer synopsis

---
