51. An effect of phase-lag compensation on servo system performance is that—


1. 1. for a given relative stability, the velocity constant is increased






   2. for a given relative stability, the velocity constant is decreased






   3. the bandwidth of the system is increased






   4. the time response is made faster





---

1. View Hint View Answer Discuss in Forum

   The effect of phase-lag compensation on servo system is that for a given relative stability, the velocity constant is increased.

   Correct Option: A

   The effect of phase-lag compensation on servo system is that for a given relative stability, the velocity constant is increased.

---

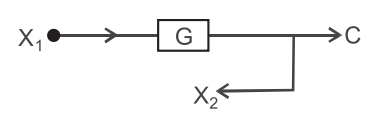

52. The block diagram shown below is equivalent to—

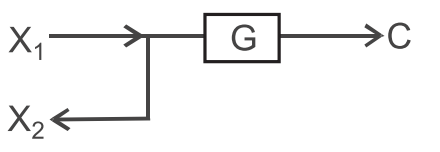

1. 1. Fig:- A

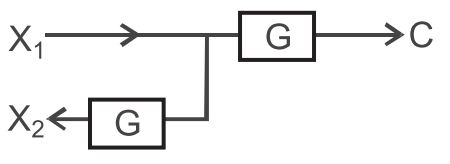

   2. Fig:- B

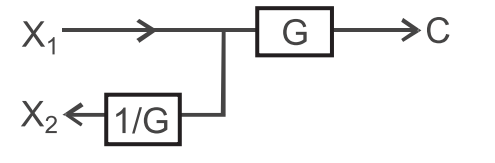

   3. Fig:- C

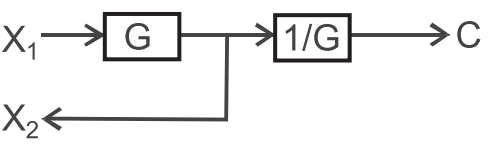

   4. Fig:- D






---

1. View Hint View Answer Discuss in Forum

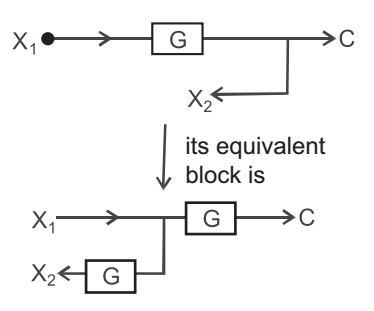

   its equivalent block is




   Correct Option: B

   its equivalent block is




---

---

53. The transfer function of a zero-order-hold system is—


1. 1. (1/s) (1 + e^–sT)






   2. (1/s) (1 – e^–sT)






   3. 1– (1/s) e^–sT






   4. 1 + (1/s) e^–sT





---

1. View Hint View Answer Discuss in Forum

   Transfer function of zero order hold system is 1/s (1 – e_{– sT)}

   Correct Option: B

   Transfer function of zero order hold system is 1/s (1 – e_{– sT)}

---

54. In the Bode-plot of a unit feedback control system, the value of phase of G (jω) at the gain crossover frequency is – 125º. The phase margin of the system is—


1. 1. – 125°






   2. – 55°






   3. 55°






   4. 125°





---

1. View Hint View Answer Discuss in Forum

   Phase margin of system,
   φ_PM = 180° + ∠ G (jω) H (jω)|
   at gain crossover frequency
   φ_PM = 180° – 125°
   or
   φ_PM = 55°

   Correct Option: C

   Phase margin of system,
   φ_PM = 180° + ∠ G (jω) H (jω)|
   at gain crossover frequency
   φ_PM = 180° – 125°
   or
   φ_PM = 55°

---

---

55. Consider a feedback control system with loop transfer function


    G(s) H(s) =	K(1 + 0·5s)
    	s(1 + s) (1 + 2s)


    The type of the closed loop system is—


1. 1. zero






   2. one






   3. two






   4. three





---

1. View Hint View Answer Discuss in Forum

   NA

   Correct Option: B

   NA

---
