21. How many FFs are required to build a binary counter circuit to count from 0 to 1023?

1. 1. 1





   2. 6





   3. 10





   4. 24





---

1. View Hint View Answer Discuss in Forum

   Number of FFS required = 2ⁿ = 1024
   ∴ n = 10

   Correct Option: C

   Number of FFS required = 2ⁿ = 1024
   ∴ n = 10

---

22. Part of a digital phase meter is shown in the given figure. If input signals are
    V_R (t) = V_R sin ωt
    and V_p(t) = – V_p sin(&omrga;t + 30°), then reading of the meter will be



1. 1. 30°





   2. 330°





   3. 150°





   4. 210°





---

1. View Hint View Answer Discuss in Forum

   NA

   Correct Option: D

   NA

---

---

23. For the logic circuit shown in the figure, output Y is



1. 1. A ⊕ B





   2. A ⊕ B





   3. A ⊕ B ⊕ C





   4. none of these





---

1. View Hint View Answer Discuss in Forum

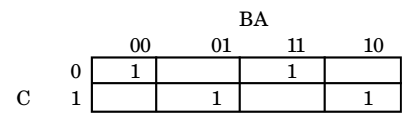

   Output is 1 when even parity
   ∴ Y = A ⊕ B ⊕ C


   Correct Option: D

   Output is 1 when even parity
   ∴ Y = A ⊕ B ⊕ C


---

24. A 4 bit ripple counter and a 4 bit synchronous counter are made by flips flops having a propagation delay of 10 ns each. If worst case delay in the ripple counter and the synchronous counter be R and S respectively, then


1. 1. R = 10 ns, S = 40 ns





   2. R = 40 ns, S = 10 ns





   3. R = 10 ns, S = 30 ns





   4. R = 30 ns, S = 10 ns





---

1. View Hint View Answer Discuss in Forum

   In ripple counter, delay 4T_d = 40 ns.
   If synchronous counter are clocked simultaneously then its worst delay will be equal to 10 ns.


   Correct Option: B

   In ripple counter, delay 4T_d = 40 ns.
   If synchronous counter are clocked simultaneously then its worst delay will be equal to 10 ns.


---

---

25. The three-stage Johnson counter as shown in figure is clocked at a constant frequency of ƒ_c from the starting state of Q₂Q₁Q₀ = 101. The frequency of output Q₂Q₁Q₀ will be



1. 1. ƒ_c/8





   2. ƒ_c/6





   3. ƒ_c/3





   4. ƒ_c/2





---

1. View Hint View Answer Discuss in Forum


   We see that 1 0 1 repeat after every two cycles, hence frequency will be ƒ_c/2 .


   Correct Option: D


   We see that 1 0 1 repeat after every two cycles, hence frequency will be ƒ_c/2 .


---
