  1. To get output 1 for the following circuit, the correct choice for the input is
    1. A = 0, B = 1, C = 0
    2. A = 1, B = 0, C = 0
    3. A = 1, B = 1, C = 0
    4. A = 1, B = 0, C = 1
Correct Option: D

The Boolen expression for the given combination is ​
output Y = (A + B) · C ​

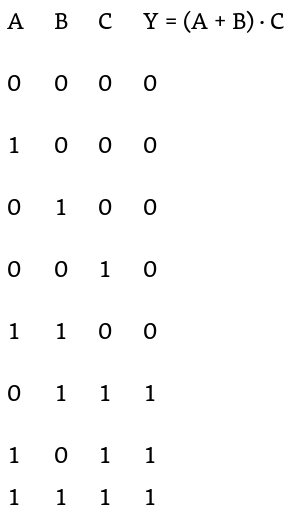

Truth table

Hence, A = 1, B = 0, C = 1
