  1. Which logic gate is represented by the following combination of logic gate ?
    1. NAND
    2. AND
    3. NOR
    4. OR
Correct Option: B

First two gates are NOT gates and the last gate is NOR gate.

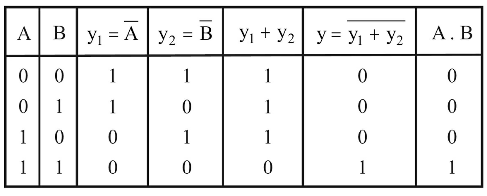

The truth table corresponding to this is as follows:

Thus the combination of gate represents AND gate.
