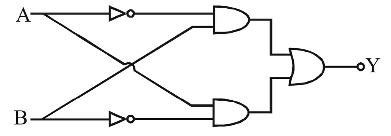

The following circuit represents

1. OR gate
2. XOR gate
3. AND gate
4. NAND gate

Correct Option: B

Output of upper AND gate = A .B
Output of lower AND gate = A.B
∴ Output of OR gate, y = A.B + B.A
This is Boolean expression for XOR gate.
