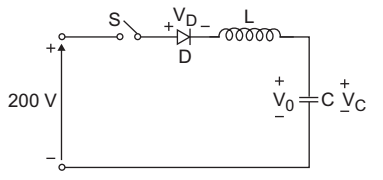

41. In given fig., if C = 8 _μF and L = 0·2 mH, the peak current handled by diode is—





1. 1. 40 A






   2. 50 A






   3. 10 A






   4. 30 A





---

1. View Hint View Answer Discuss in Forum

   NA

   Correct Option: B

   NA

---

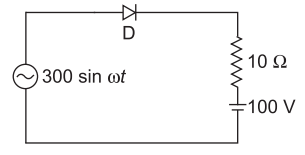

42. In given fig. PIV required for the diode is:





1. 1. 300 V






   2. 100 V






   3. 200 V






   4. 400 V





---

1. View Hint View Answer Discuss in Forum

   NA

   Correct Option: D

   NA

---

---

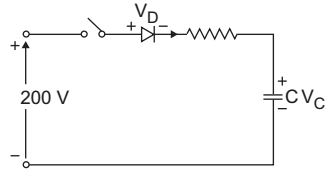

43. In given fig., suppose capacitor C is charged to 50V with lower plate positive. Switch S is closed at t = 0. Current through the diode at t = 0 and final voltage across C are respectively:





1. 1. 25 A, 250 A






   2. 25 A, 200 V






   3. 20 A, 200 V






   4. 15 A, 150 V





---

1. View Hint View Answer Discuss in Forum

   NA

   Correct Option: B

   NA

---

44. Analysis of voltage waveform of a single phase bridge converter shows that it contains X% of 6th harmonics. The 6th harmonic content of the voltage waveform of a 3-φ bridge converter would be:


1. 1. Less than X% due to an increase in the number of pulses





   2. Equal to X%, the same as that of the single phase converter





   3. Greater than X% due to changes in o/p and i/p voltages of the converter





   4. Difficult to predict as the analysis of converters is not governed by any generalised theory





---

1. View Hint View Answer Discuss in Forum

   NA

   Correct Option: A

   NA

---

---

45. Consider the following statements: The overlap angle of a phase controlled converter would increase on increasing the—
    1. Supply voltage
    2. Supply frequency
    3. Load current
    4. Source inductance Of these statements which are correct:


1. 1. 1, 2, 3






   2. 2, 3, 4






   3. 1, 2, 4






   4. 1, 3, 4





---

1. View Hint View Answer Discuss in Forum

   NA

   Correct Option: C
