31. For a sinusoidal input voltage
    V_s = V_m sin ωt = √2 V_s sin ωt
    If the input voltage is connected to load for n cycles and is disconnected for m cycles, the rms output voltage is given by
    V₀ = V_s √K
    Where k is duty cycle which is given by:


1. 1. m + n






   2. m – n






   3. mn






   4. n/(m + n)





---

1. View Hint View Answer Discuss in Forum

   NA

   Correct Option: D

   NA

---

32. MOS controlled thyristors have:
    1. Low forward voltage drop during conduction
    2. Fast turn-on and turn-off time
    3. Low switching losses
    4. High reverse voltage blocking capability
    5. Low gate input impedance
    Which are correct?


1. 1. 1, 2, 3






   2. 3, 4, 5






   3. 2, 3, 4






   4. 1, 3, 5





---

1. View Hint View Answer Discuss in Forum

   NA

   Correct Option: A

   NA

---

---

33. Static induction thyristors have:


1. 1. High dv/dt and low di/dt






   2. Low dv/dt and high di/dt






   3. Low dv/dt and low di/dt






   4. High dv/dt and high di/dt





---

1. View Hint View Answer Discuss in Forum

   NA

   Correct Option: D

   NA

---

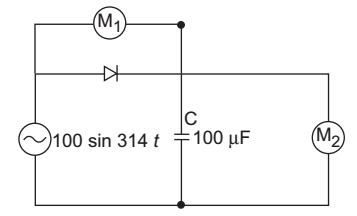

34. In given fig., zero centre and ideal PMMC voltmeters M₁ and M₂ will read:





1. 1. – 10 V, 10 V






   2. 0, 10 V






   3. – 10 V, 7·07 V






   4. 10V, 7·07 V





---

1. View Hint View Answer Discuss in Forum

   NA

   Correct Option: A

   NA

---

---

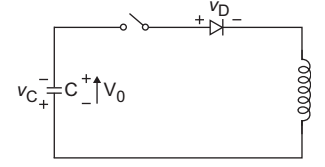

35. In given fig., capacitor C is initially charged with voltage V₀. Switch S is closed at t = 0. In steady state, V_C and V_D are respectively given by:





1. 1. V₀, – V₀






   2. 0, – V₀






   3. – V₀, 0






   4. V₀, V₀





---

1. View Hint View Answer Discuss in Forum

   NA

   Correct Option: A

   NA

---
