f3 (x2, x1, x0) =?

Home » Microprocessor » Advanced Microprocessors » Question

f₃ (x₂, x₁, x₀) =?

1. π M (0, 4, 6, 7)
2. π M (1, 4, 5, 6, 7)
3. π M (1, 2, 3, 5)
4. π M (2, 3, 4, 7)

Correct Option: B

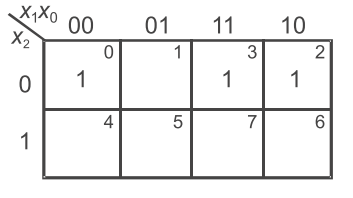

From the given figure in solution 279
f₃ (x₂, x₁, x₀) = x₁ x_{₂ + x_{₀ x_{₁
f₃ (x₂, x₁, x₀) = Σm(0,2,3)
f₃ (x₂, x₁, x₀) = π M(1, 4, 5, 6)

Hence alternative (B) is the correct choice.}}}
