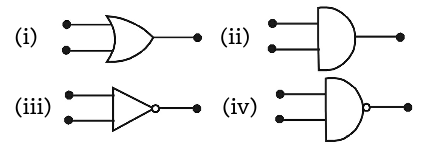

Symbolic representation of four logic gate are shown as

Pick out which ones are for AND, NAND and NOT gates, respectively

1. (ii), (iii) and (iv)
2. (iii), (ii) and (i)
3. (iii), (iii) and (iv)
4. (ii), (iv) and (iii)

Correct Option: D
