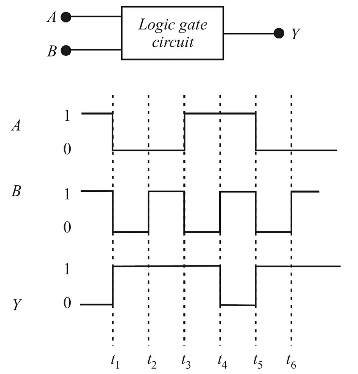

The following Figure shows a logic gate circuit with two inputs A and B and the output Y. The voltage waveforms of A, B and Y are given :
The logic gate is :
-
- NAND gate
- NOR gate
- OR gate
- AND gate
Correct Option: A
From the given wave forms, the truth table is as follows.
The above truth table is for NAND gate.
Therefore, the logic gate is NAND gate.
