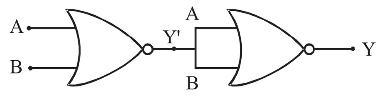

93.In the following circuit, the output Y for all possible inputs A and B is expressed by the truth table

1. A B Y
  0 1 1
  0 1 1
  1 0 1
  1 1 0
2. A B Y
  0 0 1
  0 1 0
  1 0 0
  1 1 0
3. A B Y
  0 0 0
  0 1 1
  1 0 1
  1 1 1
4. A B Y
  0 0 0
  0 1 0
  1 0 0
  1 1 1

Correct Option: C

Therefore truth table :
