Digital electronics miscellaneous
- Race around condition always arise in a—
-
View Hint View Answer Discuss in Forum
Race around condition always arise in a Asynchronous circuit.
Correct Option: B
Race around condition always arise in a Asynchronous circuit.
- The two trip points in a Schmitt inverter are 1·5 V and 2.7 V. If the output is initially HIGH, it will go to LOW state when input voltage—
-
View Hint View Answer Discuss in Forum
NA
Correct Option: A
NA
- A switch tailoring counter is made by using single D-flipflop. The resulting circuit is a—
-
View Hint View Answer Discuss in Forum
NA
Correct Option: A
NA
- In a JK flip-flop we have J = Q and K = 1 (shown in figure). Assuming the flip-flop was initially cleaned and then clocked for 6-pulses, the sequence at the Q will be—
-
View Hint View Answer Discuss in Forum

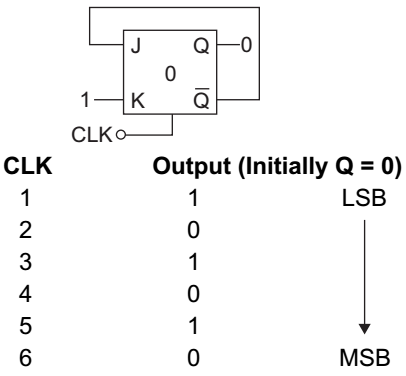

The given circuit arrangement
Correct Option: D
The given circuit arrangement
- JK flip-flop can be made from an SR flip-flop by using two additional— (A) (B) (C) (D)
-
View Hint View Answer Discuss in Forum
JK flip-flop can be made from an SR flip-flop by using two additional NAND gates.
Correct Option: A
JK flip-flop can be made from an SR flip-flop by using two additional NAND gates.
