  1. Match List-I with List-II and select the correct answer using the codes given below the lists:
    List-I List-II
    A. Periscope Antenna1. Circular Polarisation
    B. Helical Antenna 2. Scanning radar
    C. Monopulse antenna3. Communication Satellite
    D. Transponder4. Television transmission5. Microwave link










  1. View Hint View Answer Discuss in Forum

    NA

    Correct Option: D

    NA

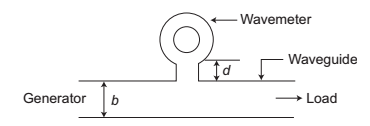

  1. Consider the following statements regarding a cavity wavemeter in a reaction type of circuit as shown in Fig.
    1. The distance d is made either zero or approximately a guide half-wave length, so that an effective short circuit appears at the waveguide wall when the cavity is at resonance.
    2. A dip in the load power occurs as the wavemeter is tuned through resonance.
    3. The magnitude of the cavity impedance depends only on the distance d.
    4. The magnitude of the power dip depends only on the Q of the cavity.











  1. View Hint View Answer Discuss in Forum

    NA

    Correct Option: D

    NA



  1. ‘Double the minimum’ method is relevant to the measurement of:









  1. View Hint View Answer Discuss in Forum

    NA

    Correct Option: D

    NA


  1. On a resistively terminated high frequency loss-less transmission line fed by a 500 MHz source, the VSWR is found to be equal to 2 and the first voltage minimum is measured at 30 cm from the load end. What is the value of the ‘normalised’ load resistance?









  1. View Hint View Answer Discuss in Forum

    NA

    Correct Option: C

    NA

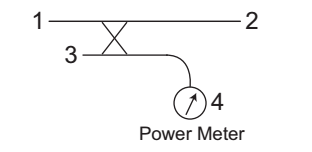

  1. When 10 mW power is incident at port 1 of the directional coupler shown in Fig. the power meter at port 4 reads 10 μW. When the same power is incident at port 2, the meter reads 10 nW. What are the coupling loss and directivity?











  1. View Hint View Answer Discuss in Forum

    NA

    Correct Option: C
