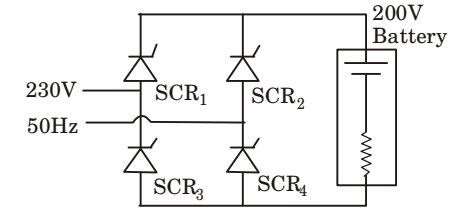

  1. A single-phase bridge converter is used to charge a battery of 200 V having an internal resistance of 0.2 Ω as shown in figure. The SCR are triggered by a constant dc signal. If SCR 2 gets open circuited, then what will be the average charging current ?

    1. 23.8 A
    2. 15 A
    3. 11.9 A
    4. 3.54 A
Correct Option: A

NA
