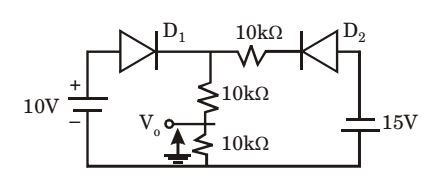

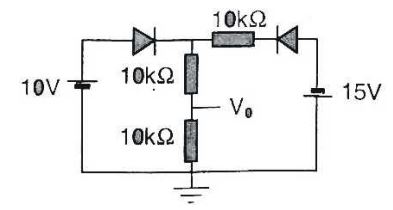

Assuming that the diodes in the given circuit are ideal, the voltage V₀ is

1. 4 V
2. 5 V
3. 7.5 V
4. 12.12 V

Correct Option: B

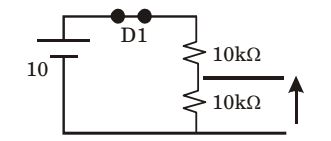

In this case, diode D₂ will always be reverse biased,

∴ V₀ =	10 k	× 10 = 5 volts
	10k + 10k
