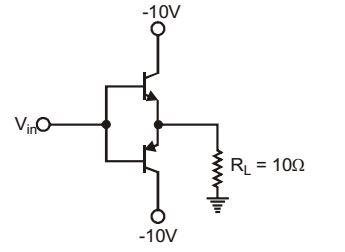

  1. The input signal Vin shown in the figure given below is a 1 kHz square wave volt age that alternates between +7V and – 7V with a 50% duty cycle. Both transistors have the same current gain, which is large. The circuit delivers power to the load resistor RL. What is the efficiency of this circuit for the given input? Choose the closest answer..

    1. 46%
    2. 55%
    3. 63%
    4. 92%
Correct Option: D

It is a class-C amplifier, so efficiency is high.
