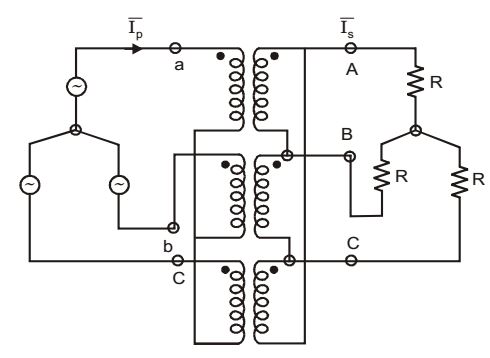

  1. A balanced (positive sequence) three-phase AC voltage source is connected to a balanced, start connected through a star-delta transformer as shown in the figure. The line-to-line voltage rating is 230 V on the star side, and 115 V on the delta side. If the magnetizing current is neglected and I s = 100 ∠0° A, then what is the value of I p in Ampere?

    1. 50 ∠ 30°
    2. 50 ∠– 30°
    3. 50 √3 ∠30
    4. 200 ∠30°
Correct Option: A

NA
