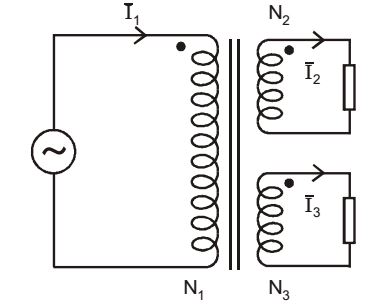

  1. A three-winding transformer is connected to an AC voltage source as shown in the figure. The number of turns are as follows : N1 = 100, N2 = 50. If the magnetizing current is neglected, and the currents in two windings are I2 = 2 ∠30° A and I 3 = 2 ∠150° A, then what is the value of the current I1 in Ampere?

    1. 1∠90°
    2. 1∠270°
    3. 4∠90°
    4. 4∠270°
Correct Option: A

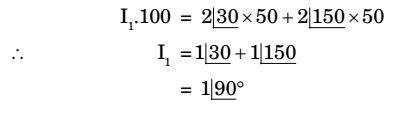

I1 N1 = I2 N2 + I3 N3
