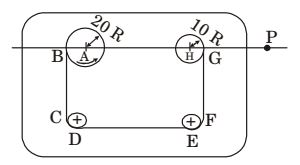

For the audio Cassette mechanism shown in figure given below where is the instantaneous centre of rotation (P) of the two spools?
-
- Point P lies to the left of both the spools but at infinity along the line joining A and H
- Point P lies in between the two spools on the line joint A and H, such that PH = 2AP
- Point P lies to the right of both the spools on the line joining A and H, such that AH = HP
- Point P lies at the intersection of the line joining B and C and the line joining G and F
- Point P lies to the left of both the spools but at infinity along the line joining A and H
Correct Option: C
NA
