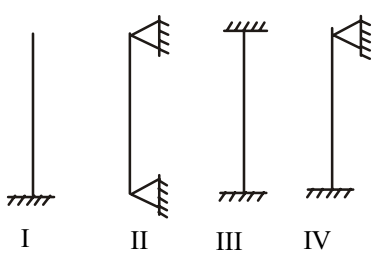

  1. Four column of the same material and having identical geometric properties are supported in different ways as shown below:

    It is required to order these four beams in the increasing order of their respective first buckling loads. The correct order is given by
    1. I, II, III, IV
    2. III, IV, I, II
    3. II, I, IV, III
    4. I, II, IV, III
Correct Option: B
