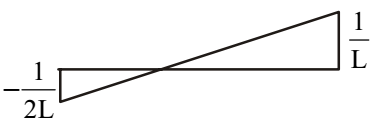

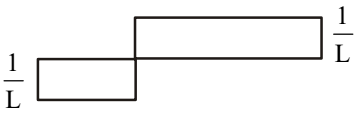

A simply supported beam with an overhang is traversed by a unit concentrated moment from the left to the right as shown below: The influence line for reaction at B is given by
zero everywhere
Correct Option: C

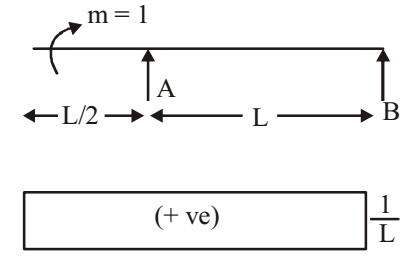

Reaction at support is independent of position of couple ∑MA = 0 ∴ RB × L = M = 1 ∴ RB = 1/L
