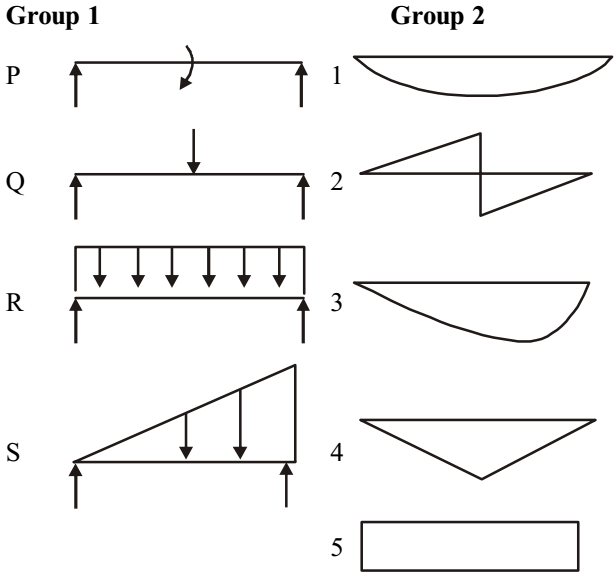

  1. Group I shows different loads acting on a beam and Group 2 shows different bending moment distributions. Match the load with corresponding bending moment diagram.
    1. P Q R S
      4 2 1 3
    2. P Q R S
      5 4 1 3
    3. P Q R S
      2 5 3 1
    4. P Q R S
      2 4 1 3
Correct Option: D

P Q R S
2 4 1 3
