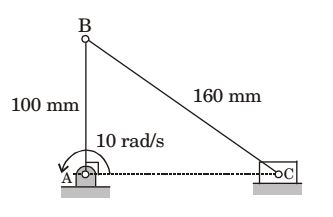

  1. In a slider-crank mechanism, the lengths of the crank and the connecting rod are 100 mm and 160 mm, respectively. The crank is rotating with an angular velocity of 10 radian/s counter clockwise. The magnitude of linear velocity (in m/s) of the piston at the instant corresponding to the configuration shown in the figure is ___.
    1. 1 m/s
    2. 2 m/s
    3. 3 m/s
    4. 4 m/s
Correct Option: A

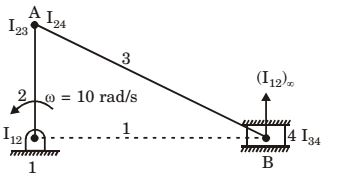

ω2(I24 I12) = V4 = VB
VB = ω2 (I24 I12) = 10 × 0.1
VB = 1 m/s
