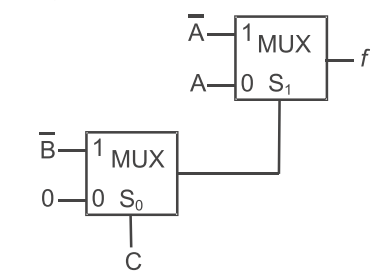

  1. The network shown below implements—
    1. NOR gate
    2. NAND gate
    3. XOR gate
    4. XNOR gate
Correct Option: C

From figure

S0 = C.0 + CB
= CB = S1
f = S1.A + S1A
= EX-OR gate
