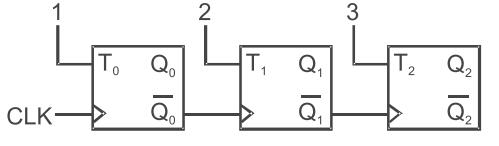

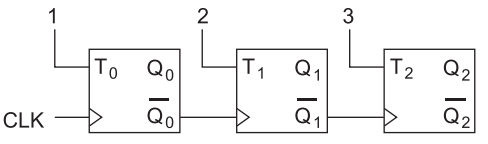

Fig. given below shows a ripple counter using positive edge trigger flip flops. If the present state of the counter is Q2 Q1 Q0= 011, then the next state Q2 Q1 Q0 will be—
010
100
111
101
Correct Option: A
The given figure shown is a 3-bit binary ripple down counter. So, the next state will be 010.
