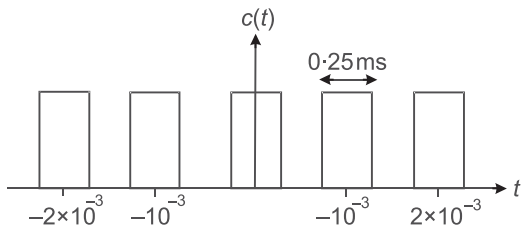

A signal x(t) is multiplied by rectangular pulse train c(t) as shown below:
x(t) would be recovered from the product x(t) c(t) by using an ideal LPF if X (jω) = 0 for—
-
- ω > 2000π
- ω > 1000π
- ω < 1000π
- ω < 2000π
Correct Option: C
In order to avoid aliasing fs > 2fm
or
≥ 2ωm | |
T |
where ωm is the maximum frequency of x(t) and T is period of C (t), i.e. T = 10– 3
and
> 2ωm | |
10−3 |
or ωm < 1000π
Therefore, X (jω) = 0 for ω < 1000
Hence alternative (C) is the correct choice.
