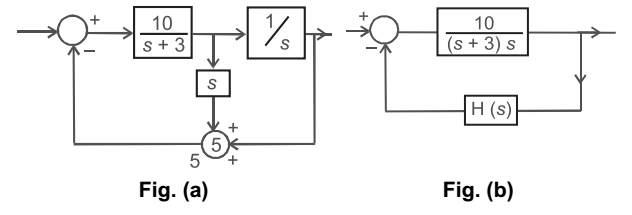

  1. The block diagram shown in figure (a) is to be represented as in figure (b) for what value of H(s)?


    1. 5s + 1
    2. s + 1
      s

    3. 5(s + 1)
    4. s(s + 5)
Correct Option: A

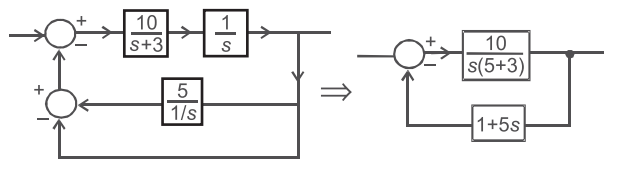

Here center block of 5 is to shift to right side before 1/s block.

Then the block will be
5
= 5s
1/s
Now this is parallel with unit gain i.e., 5s + 1
