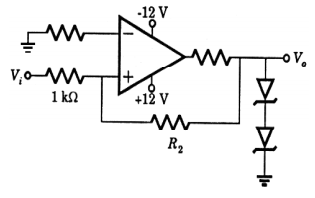

  1. For the comparator circuit shown in figur e forward diode voltage drop is Vy = 0.7 V and reverse Zener diode voltage is 5.6 V. If hysteresis width is 1 V, then value of R2 is ____________kΩ
    1. 30
    2. 31
    3. 12.6
    4. 33
Correct Option: C

VH = 5.6 + 0.7 = 6.3 V, VL = – 5.6 – 0.7 = – 6.3 V
Let 1kΩ = R1,

∴ VTH = -
R1
VL
R2

and VTL = -
R1
VH
R2

∴ VTH - VTL = 1 = -
R1
(VL - VH)
R2

⇒ 1 =
1k
(2)(-6.3)
R2

⇒ RT = 12.6 kΩ
