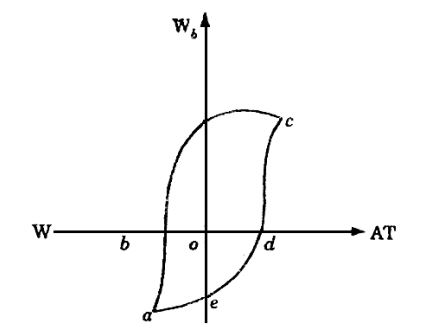

If hysteresis loop of a magnetic material has an area of 5 cm2 with the scales given as 1 cm = 2 AT and 1 cm = 50 mWb. At 50 Hz, then total hysteresis loss is _______ W .
-
- 2.5 W
- 5 W
- 15 W
- 25 W
Correct Option: D
Given : Area of the loop = 5 cm2
f = 50 Hz
∴ Hystirisis loss , Ph = 5 × 2 × 50 × f × 10– 3 W
= 5 × 2 × 50 × 50 × 10– 3 W = 25 W.
