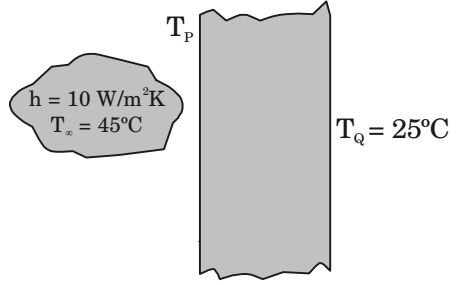

  1. A plane slab of thickness L and thermal conductivity k is heated with a fluid on one side (P), and the other side (Q) is maintained at a constant temperature, TQ of 25°C, as shown in the figure. The fluid is at 45°C and the surface heat transfer coefficient h, is 10 W/m2K. The steady state temperature. Tp (in °C) of the side which is exposed to the fluid is (correct to two decimal places).
    1. 43.889°C
    2. 23.889°C
    3. 33.889°C
    4. 13.889°C
Correct Option: C

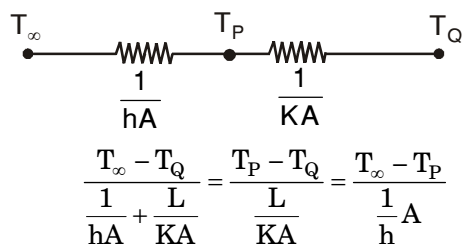

For steady state condition

so from above equation:
