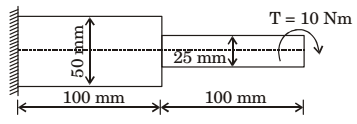

A stepped steel shaft shown below is subjected to 10 N-m torque. If the modulus of rigidity is 80 GPa, the strain energy in the shaft in N-mm is

1. 4.12
2. 3.46
3. 1.73
4. 0.86

Correct Option: C

NA
