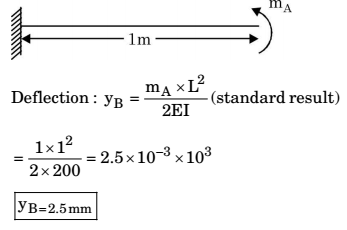

  1. A horizontal cantilever beam of circular crosssection, length 1.0 m and flexural rigidity EI = 200 N-m² is subjected to an applied moment MA = 1.0 N-m at the free end as shown in the figure. The magnitude of the vertical deflection of the free end is ____ mm (round off to one decimal place)
    1. 2.5 mm
    2. 2.4 mm
    3. 2.6 mm
    4. 1.5 mm
Correct Option: A
