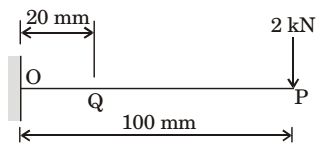

  1. A cantilever beam with square cross-section of 6 mm side is subjected to a load of 2 kN normal to the top surface as shown in the figure. The Young's modulus of elasticity of the material of the beam is 210 GPa. The magnitude of slope (in radian) at Q (20 mm from the fixed end) is _____.
    1. -0.1587
    2. -1.1587
    3. 0.1587
    4. 1.1587

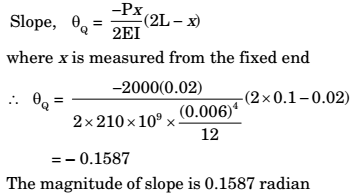

Correct Option: A
