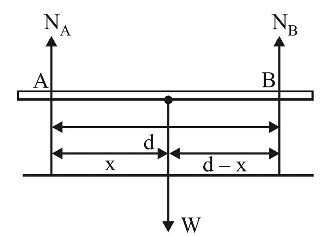

A rod of weight W is supported by two parallel knife edges A and B and is in equilibrium in a horizontal position. The knives are at a distance d from each other. The centre of mass of the rod is at distance x from A. The normal reaction on A is
-
-
Wd x -
W(d - x) x -
W(d - x) d -
Wx d
-
Correct Option: C
By torque balancing about B
NA(d) = W (d – x)
| NA = | ||
| d |
