Current Electricity

  1. A potentiometer circuit has been set up for finding the internal resistance of a given cell. The main battery used across the potentiometer wire, has an emf of 2.0 V and a negligible internal resistance. The potentiometer wire itself is 4m long, When the resistace R, connected across the given cell, has values of ​
    (i) infinity​
    (ii) 9.5Ω ​The balancing lengths’, on the potentiometer wire are found to be 3 m and 2.85 m, respectively. The value of internal resistance of the cell is
    1. 0.25Ω ​
    2. 0.95Ω ​
    3. 0.5Ω ​
    4. 0.75Ω
Correct Option: C

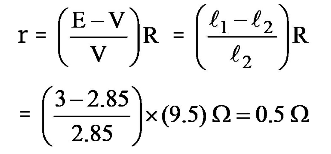

Internal resistance of the cell,
