  1. A proposed housing will have HIG, MIG and LIG units on a site measuring 60,750 sq. m. The buildable area of each category of units with respect to the total buildable area will be 30%, 50% and 20% respectively. The maximum allowable FAR is 2.5, ground coverage 45% and height 15m. The maximum buildable area in sq. m. of HIG units, considering a floor height of 3 m for all categories will be ___________
    1. 31000 to 31510
    2. 31000 to 51010
    3. 41000 to 41010
    4. All of the above
Correct Option: C

Site Area = 60,750 m2
Maximum FAR = 2.5
Maximum Built-up area consuming full FAR = 2.5 × 60,750 = 1,51,875 m2 .
Maximum ground coverage = 45% = 0.45 × 60750 = 27,337.5 m2 .

Maximum floor possible as per height restriction =
15
= 5 floors.
3

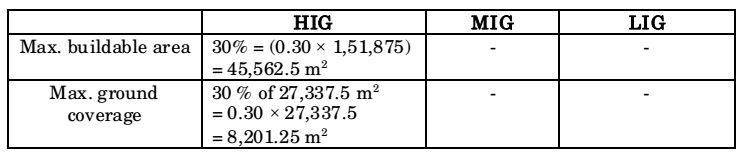

Thus, maximum buildable area of HIG units = 5 × 8,201.25 = 41,006.25 m2
