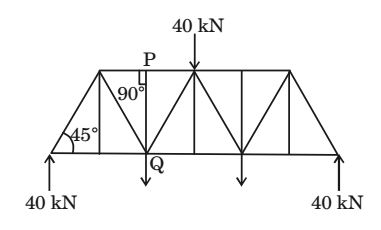

For a symmetrical two dimensional truss as shown in the above figure, vertical force in kN acting on the member PQ is ____________

1. 0
2. 1
3. 2
4. 3

Correct Option: A

By applying concept of zero force member, F_PQ = 0 kN
